AthenaVision AR Glasses

User Guide

Charging the AthenaVision AR Glasses

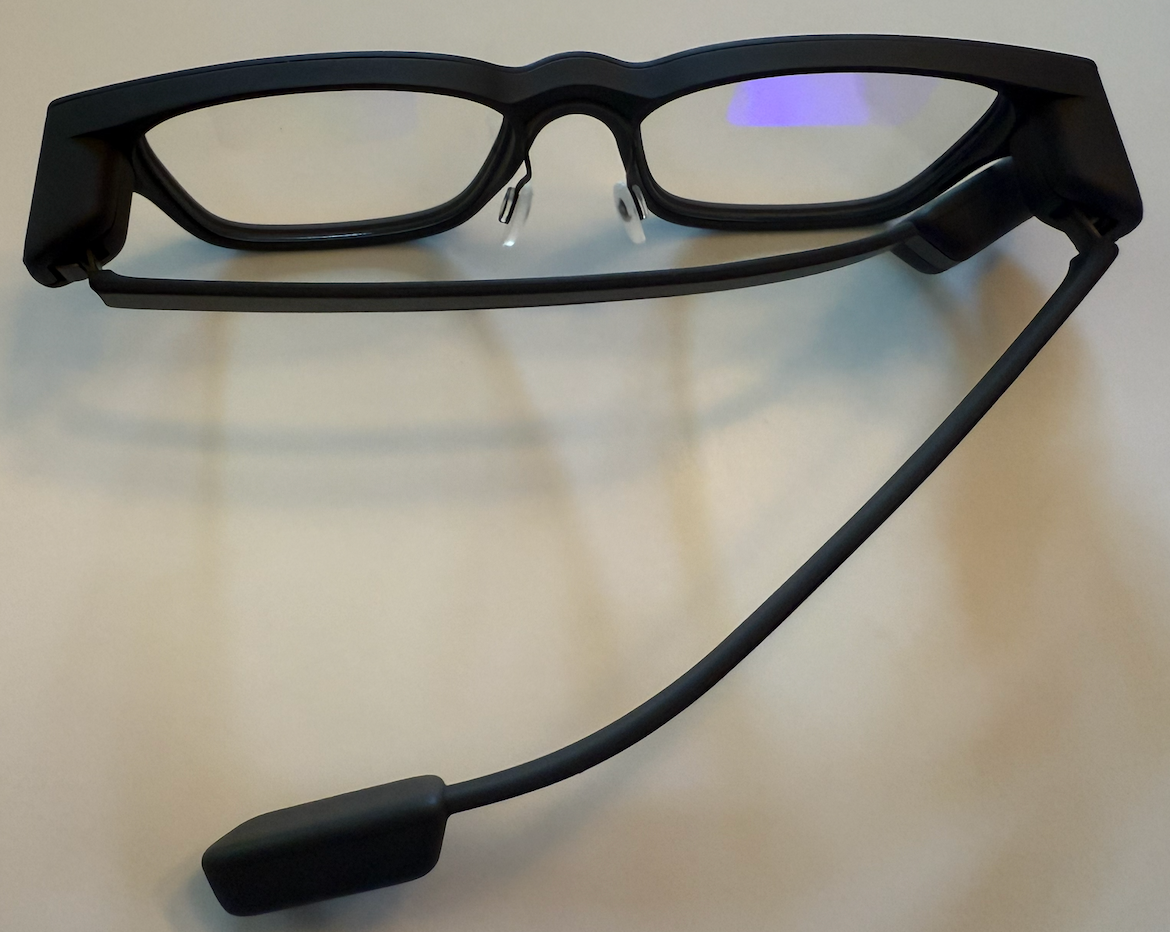

1. Fold the AthenaVision AR Glasses closed with the left side folding in first, then the right

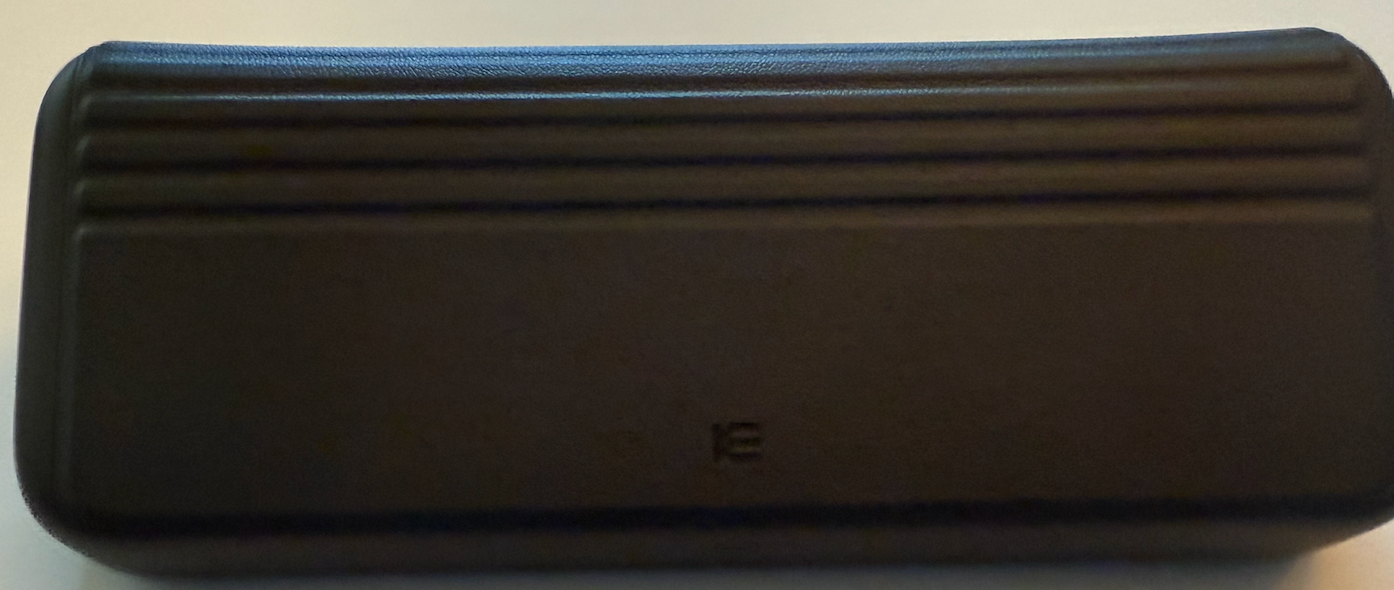

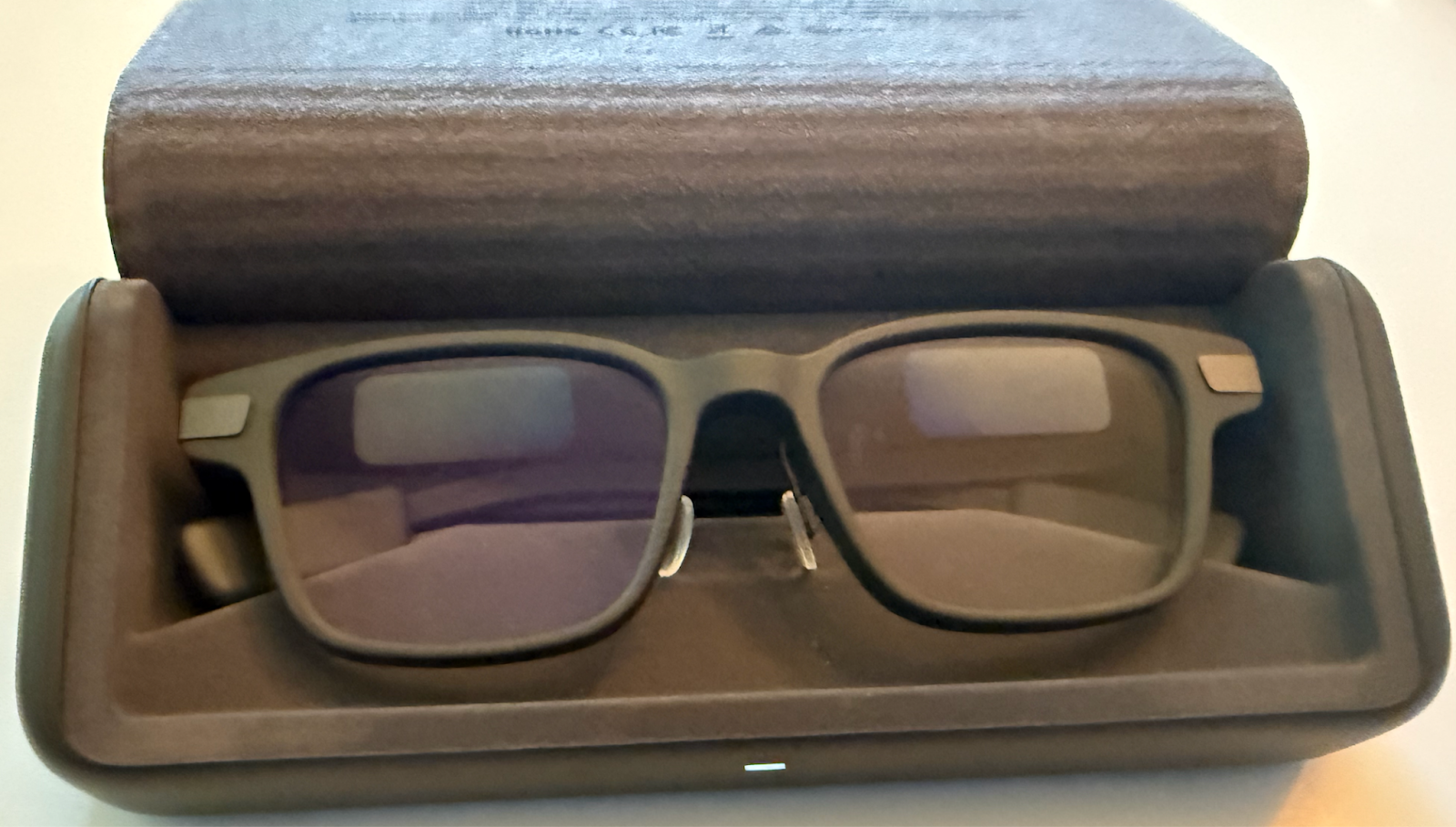

2. Place the AthenaVision AR Glasses in the case and close the case

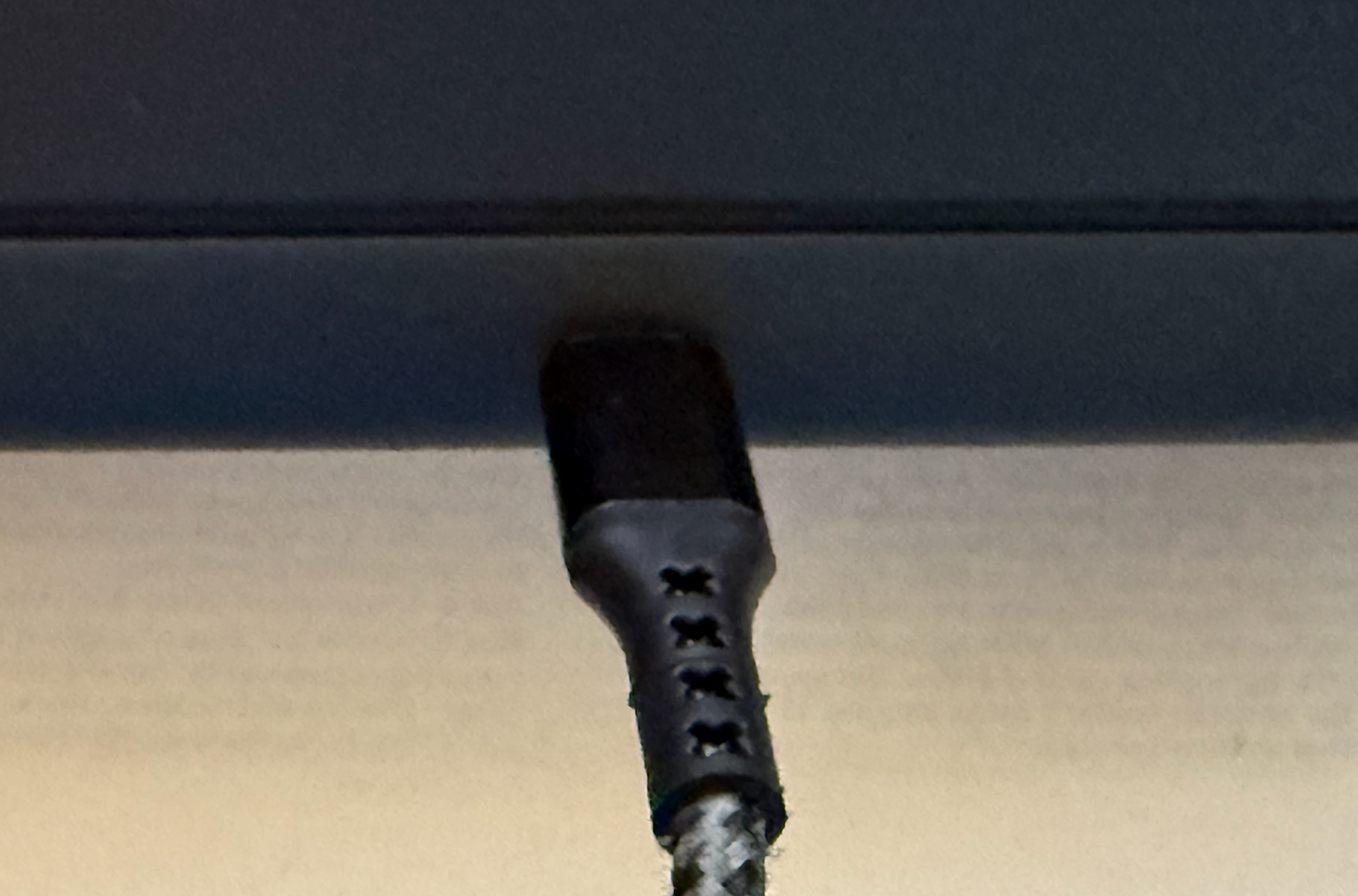

3. Connect the USB-C charging cable to the charging port on the back of the AthenaVision AR Glasses case

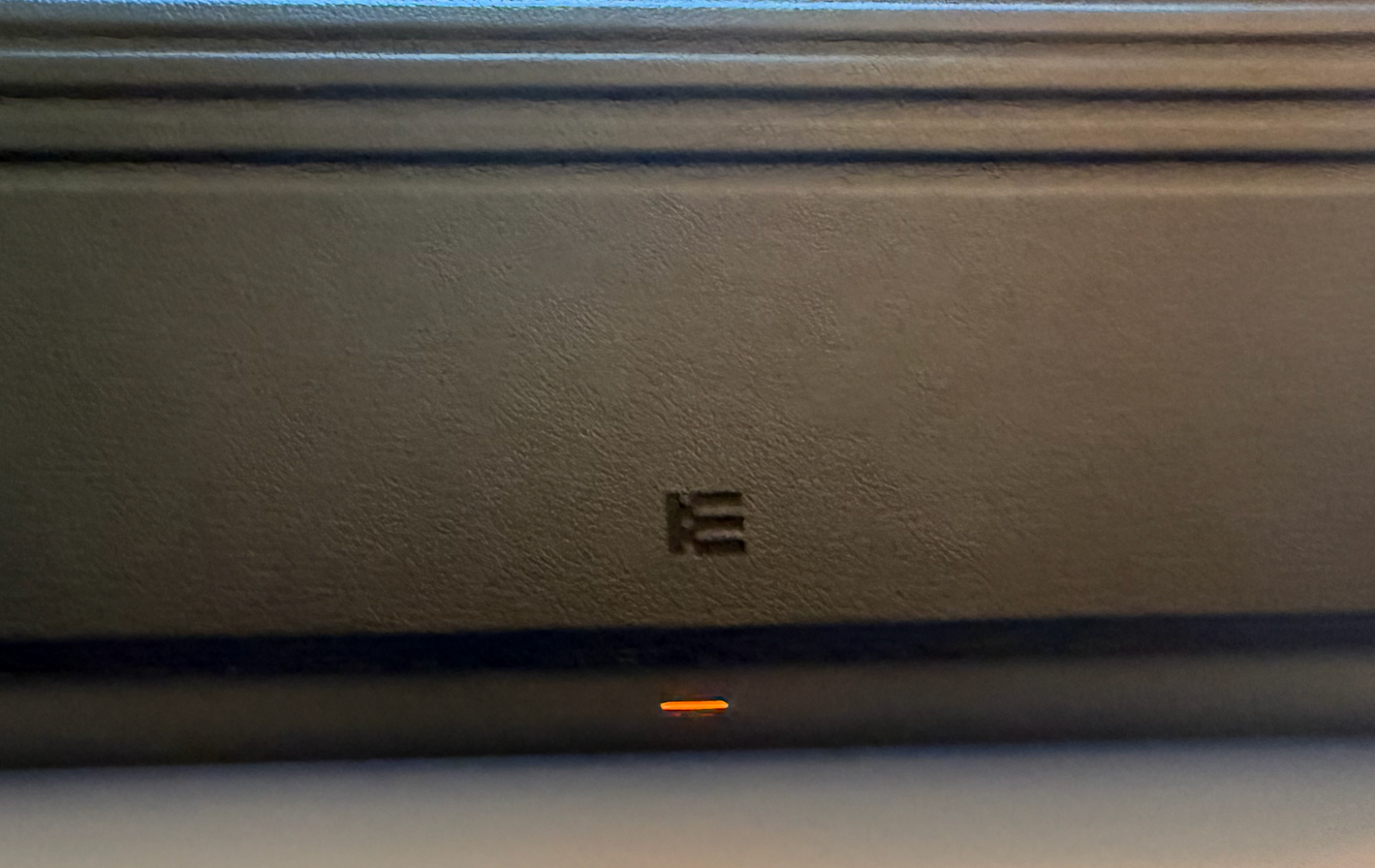

4. If the AthenaVision AR Glasses were not folded closed correctly, the light on the front of the case will blink orange

Connect Glasses to iPhone

1. Begin with the AthenaVision AR Glasses charging in the case

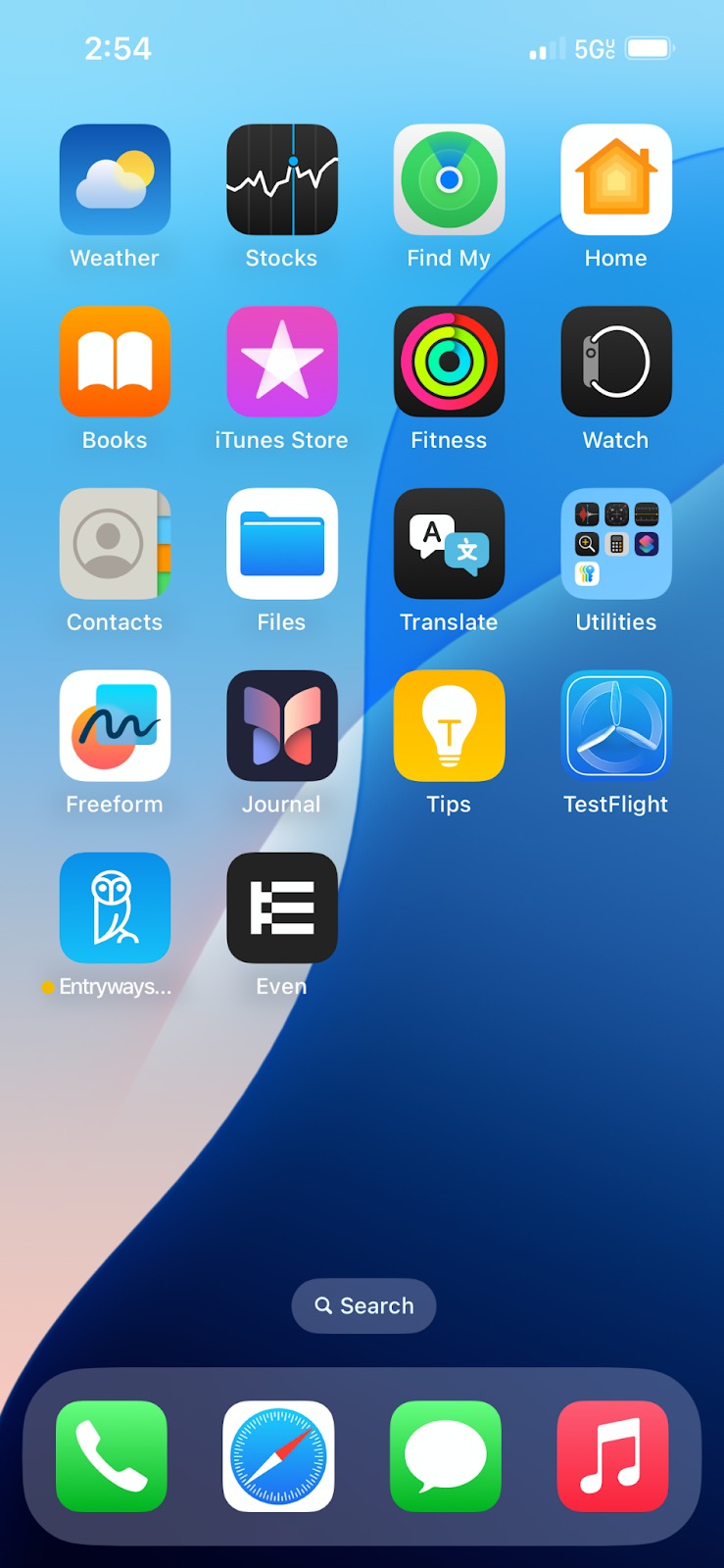

2. Launch the Entryway Security app on the Apple iPhone. This app will connect you to the AthenaVision Platform to allow you to receive messages from the AthenaVision AR Glasses Platform. Download this AR Glasses Messaging app here

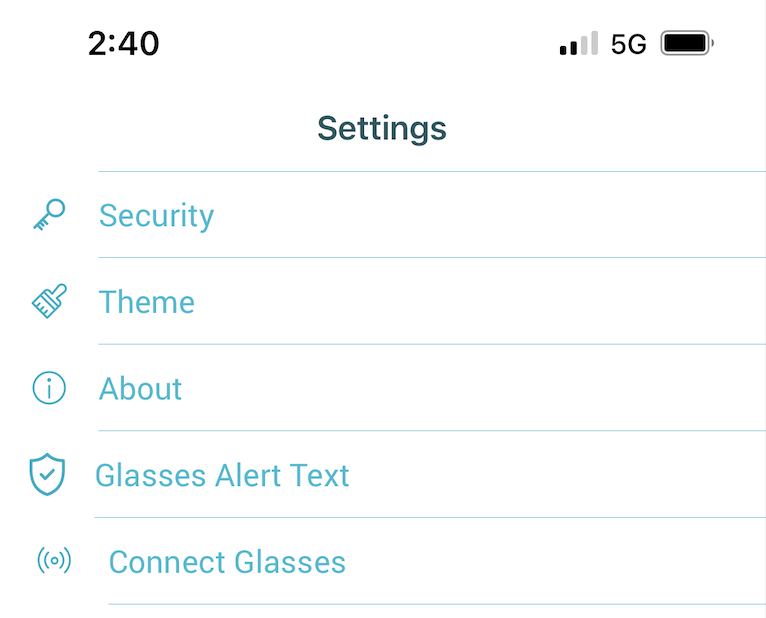

3. Click on Settings at the bottom-right corner of the screen

4. Click on Connect Glasses

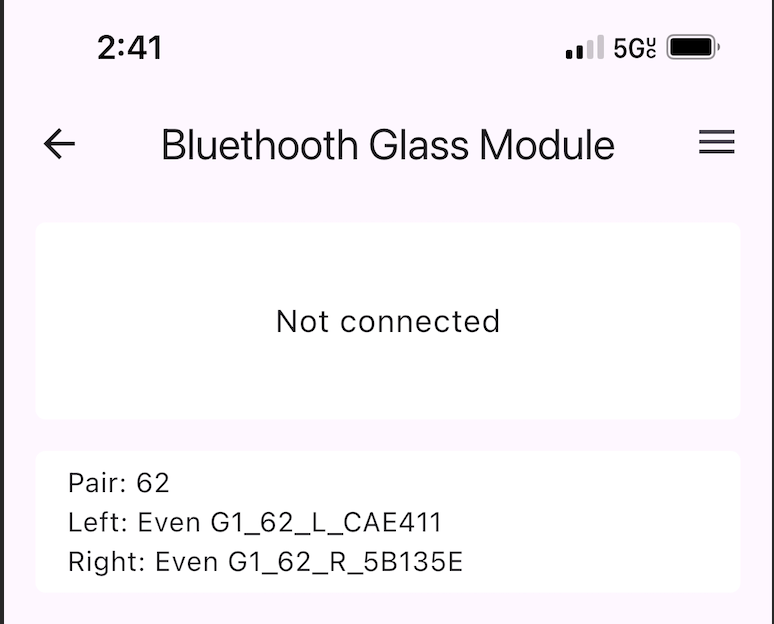

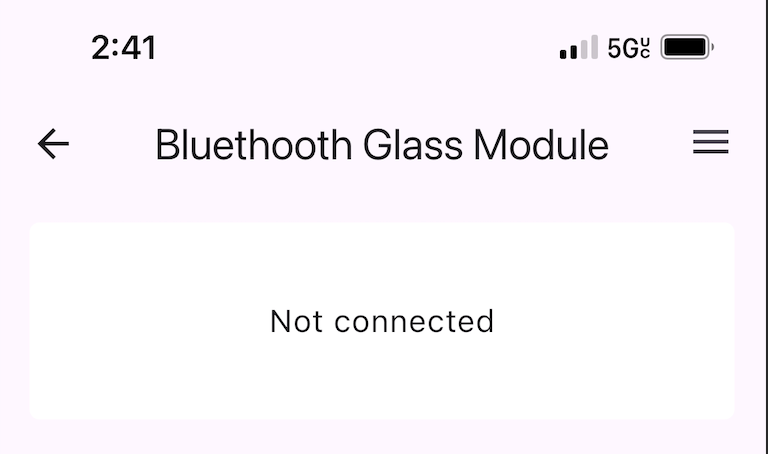

5. Click on Not Connected in the middle of the Athena Vision AR Glasses app

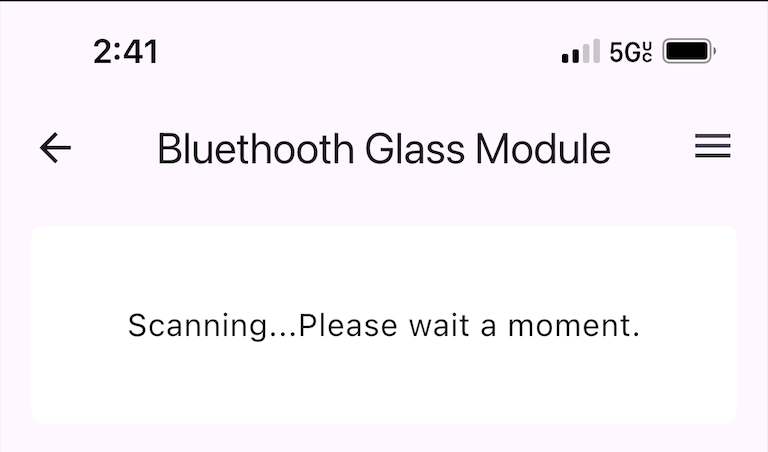

6. Wait while the iPhone scans for the AthenaVision AR Glasses

7. Once the pair of Athena Vision AR Glasses is detected, click on the pair of Athena Vision AR Glasses

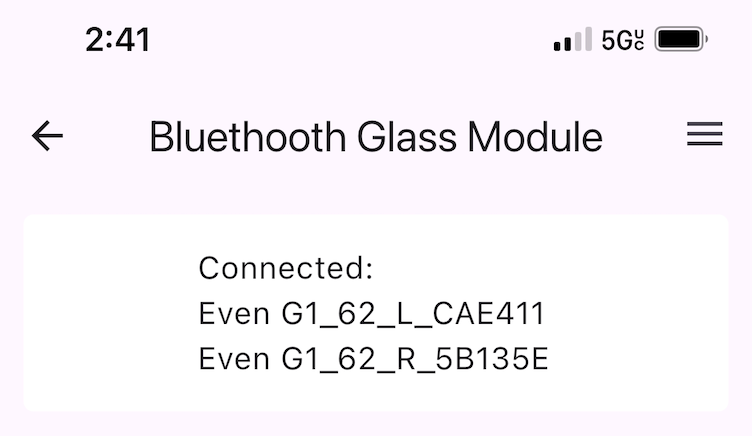

8. The pairing process is complete you can now receive AR Messages from the AthenaVision AR Glasses Messaging Platform

AthenaVision AR Glasses Alert Text

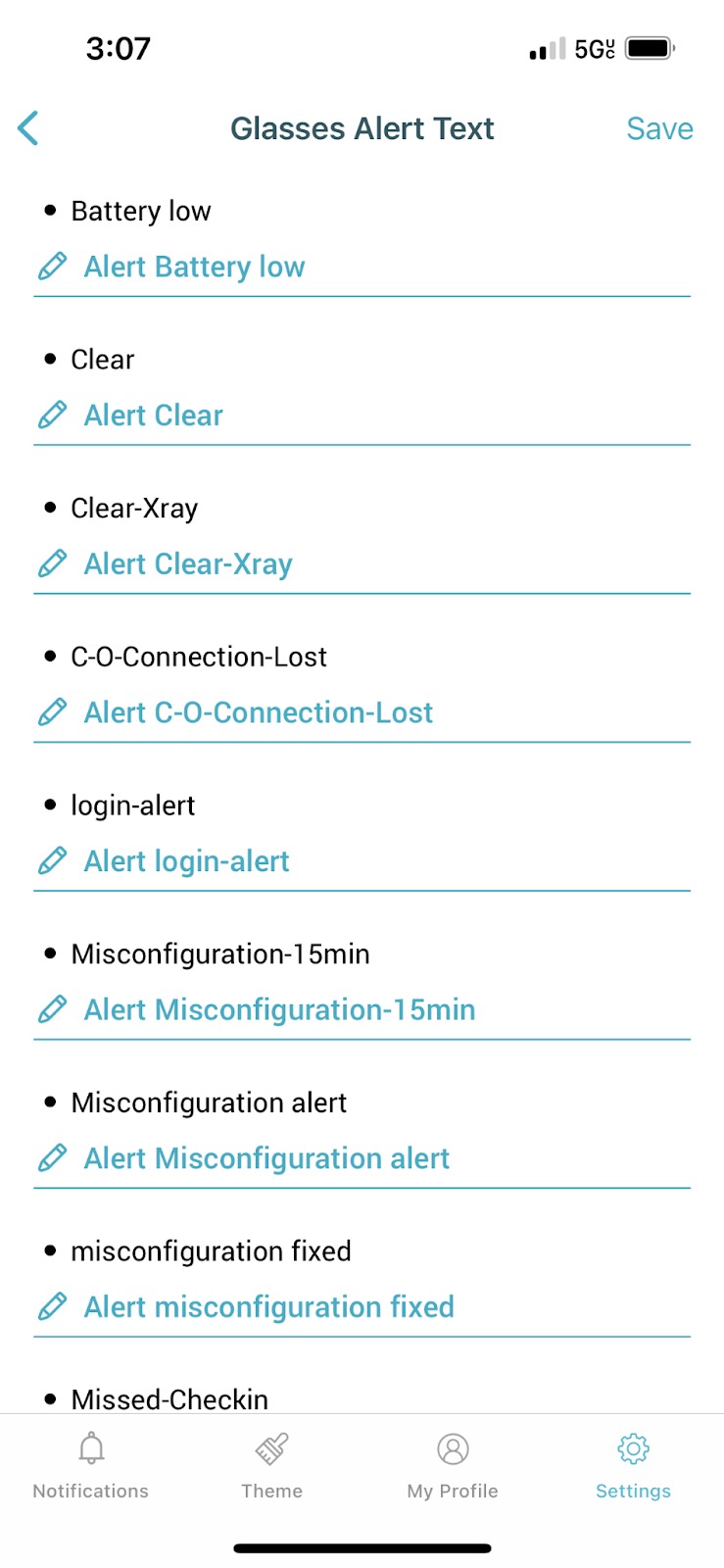

The text that is displayed on the AthenaVision AR Glasses is editable for each alert type. This is done under Settings, then by clicking on Glasses Alert Text.

Changing Glasses Alert Text modifies the message sent to the AthenaVision AR Glasses when the Entryway Security app receives an alert. For instance, Battery low is the alert type for when the OpenGate batteries are running low. The end user may wish to change the message displayed to “Please change the batteries.”
