X-ray Machine User Guide

Modified on Wed, May 7 at 9:15 AM










X-ray Machine User Guide





Workspace Setup

  • Placement of X-ray in relation to WDS - be mindful of Electromagnetic Field (EMF)

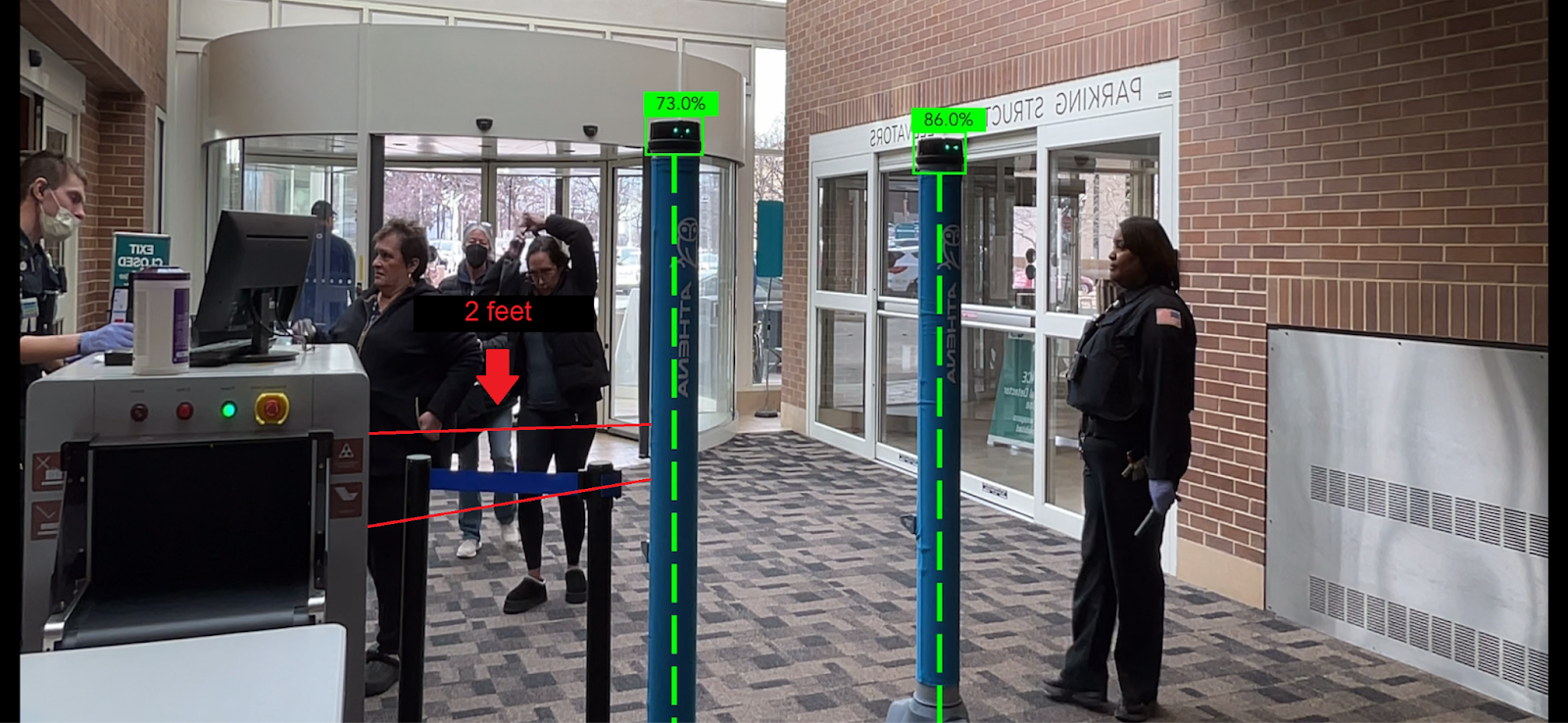

    • Any Weapons Detection System or other EMF-sensitive device should be placed at least two (2) feet away from the X-ray machine to avoid interference

    • When using the OpenGate Weapons Detection System, it is advised that the Main Pole be the closest to the X-ray machine and the Secondary Pole farthest away from the X-ray machine

  • Configuration of work area – iPad placement in relation to X-ray (suggestion only)

    • The Operator iPad may be used from anywhere the end-user wishes, particularly when in a wireless setup

    • Generally, placing the Operator iPad next to the person at the X-ray machine, opposite the entrance is desirable; this gives the security guard the ability to screen the items passing through the X-ray as well as quickly handle any bags that contain possible threat objects

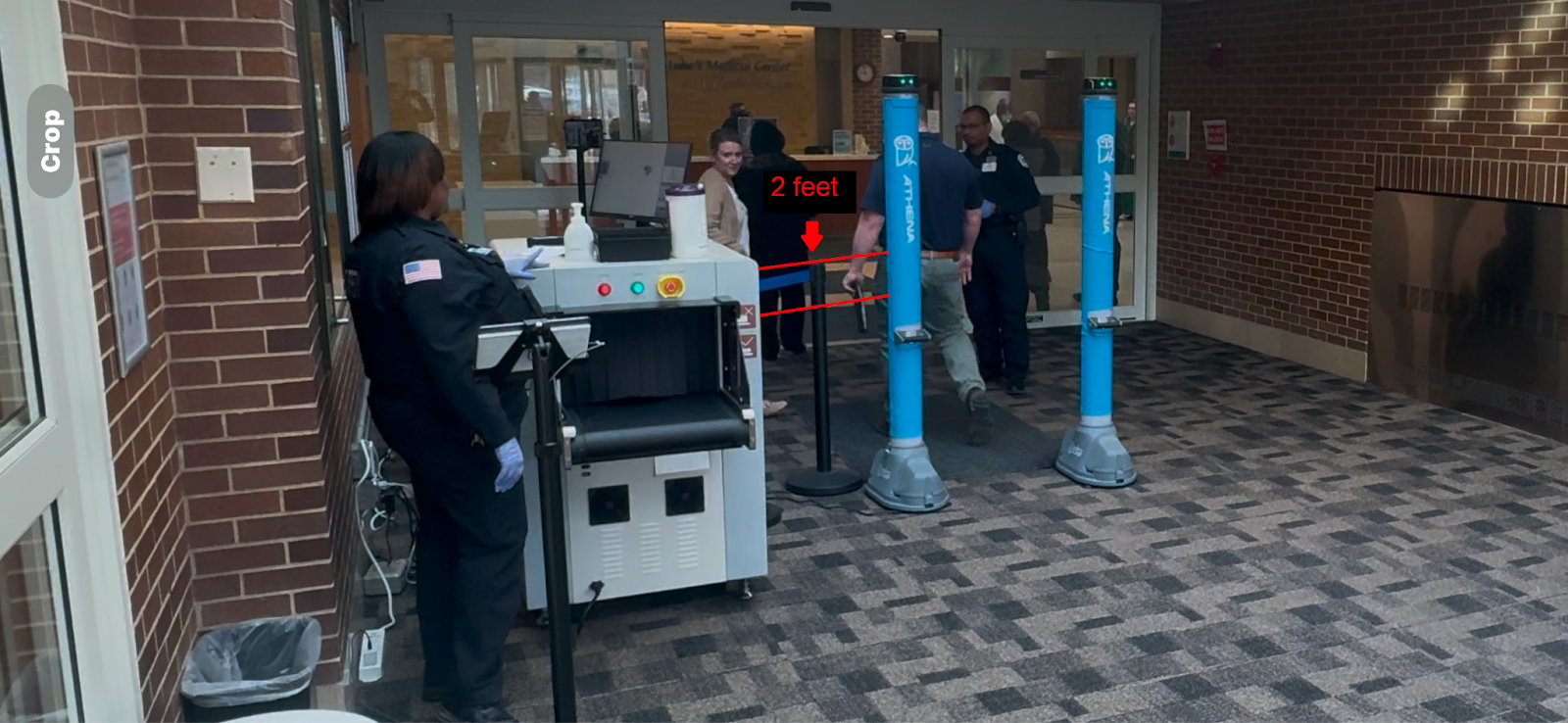

    • WDS Poles should be placed roughly center on the X-ray machine, so, person places baggage on the belt, walks through poles and grabs their bag on the other side.

    • Cables should always be taped down with tape or cable covers to eliminate tripping hazard and increase safety.










Machine Startup

  1. Ensure the power cord is plugged in to the wall and also to the side of the X-ray machine

  2. Open the control panel to access the keyboard  on the X-ray machine

  3. Push the power button – wait approximately 1-2 minutes for the machine to start up and the X-ray application to auto-start

  4. Calibrate the X-ray machine by running the refinement process

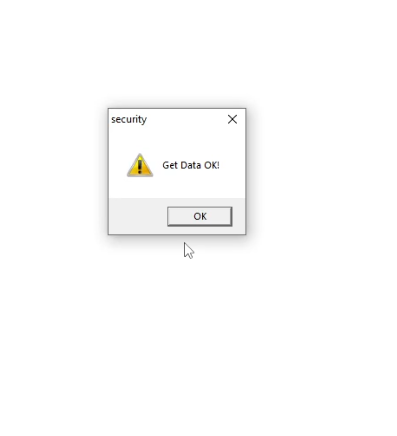

    1. Press [Refine +], then click OK when you see the “Get Data OK!” message

    2. Press [Refine -], then click OK when you see the “Get Data OK!” message

    3. Pass 5 test items through, including at least one real threat object to confirm AI is running

    4. Note: if the AI is not identifying objects after five items have passed through, shutdown and restart the machine and try again

  5. Close control panel

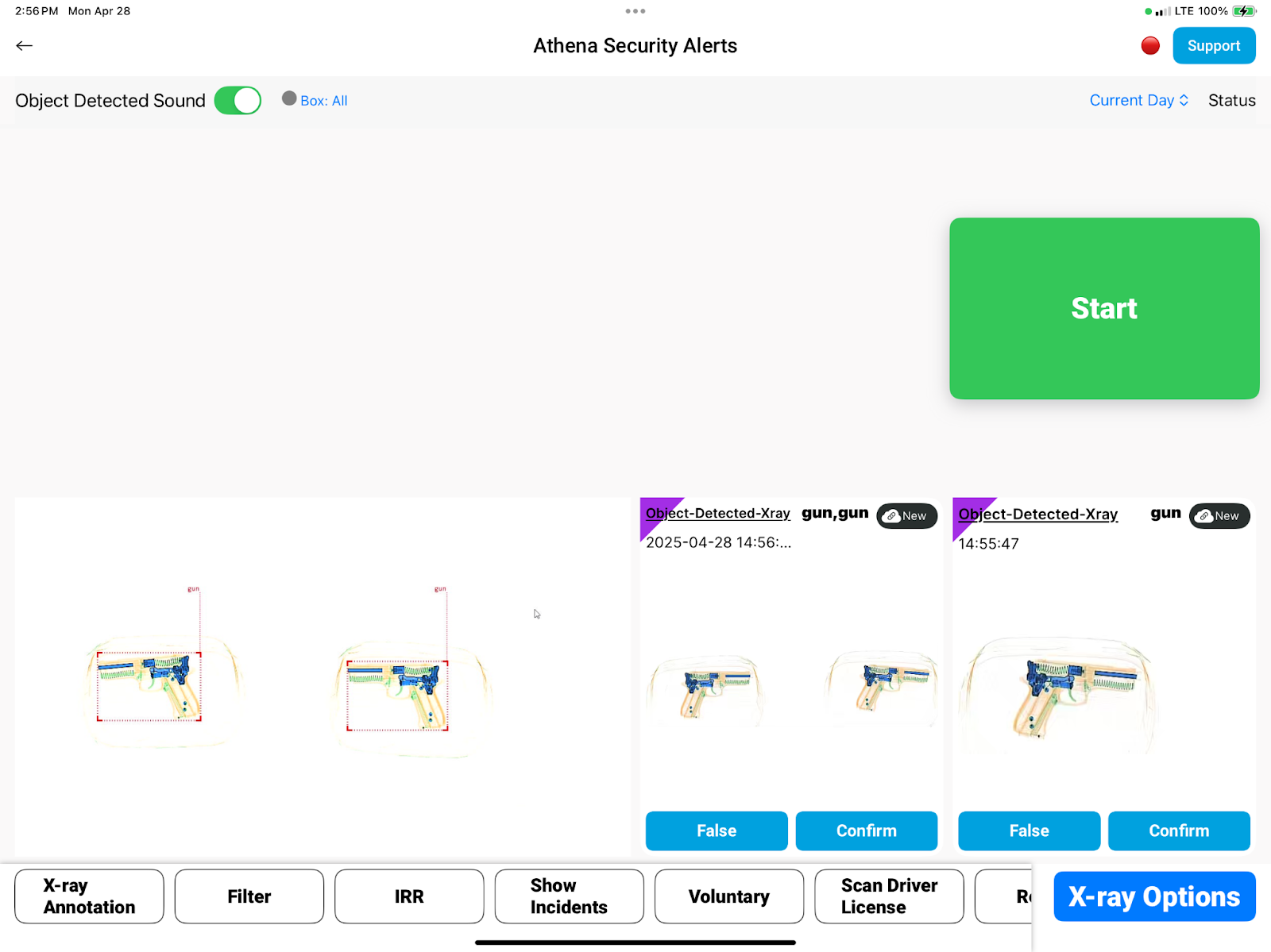

  6. Push Start on the iPad to start the belt



  1. Click X-Ray options

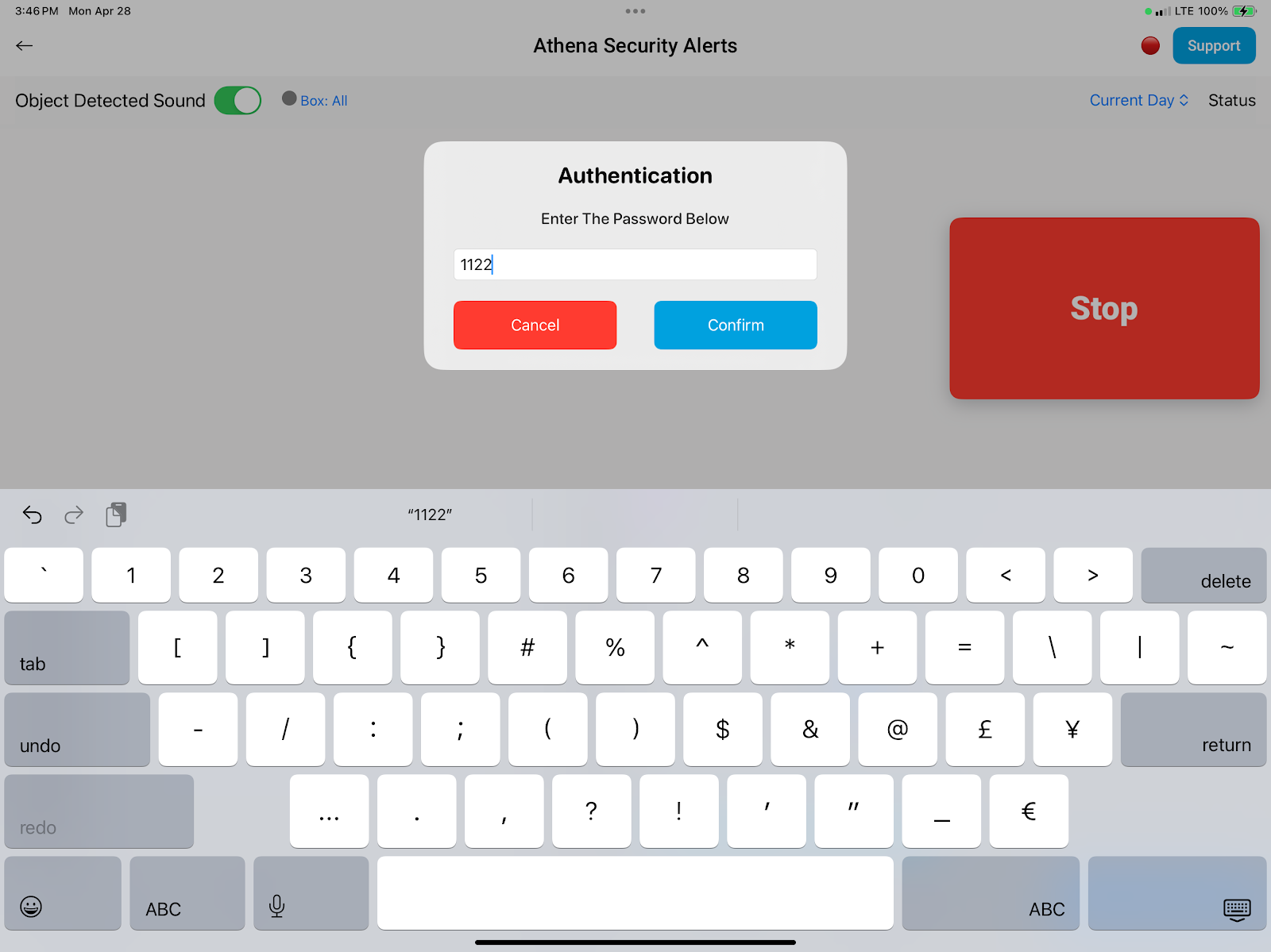

  1. Enter password:














  1. Press the correct button, done.




Start-up From X-Ray panel - This does require a tri-angle key to unlock the keyboard.

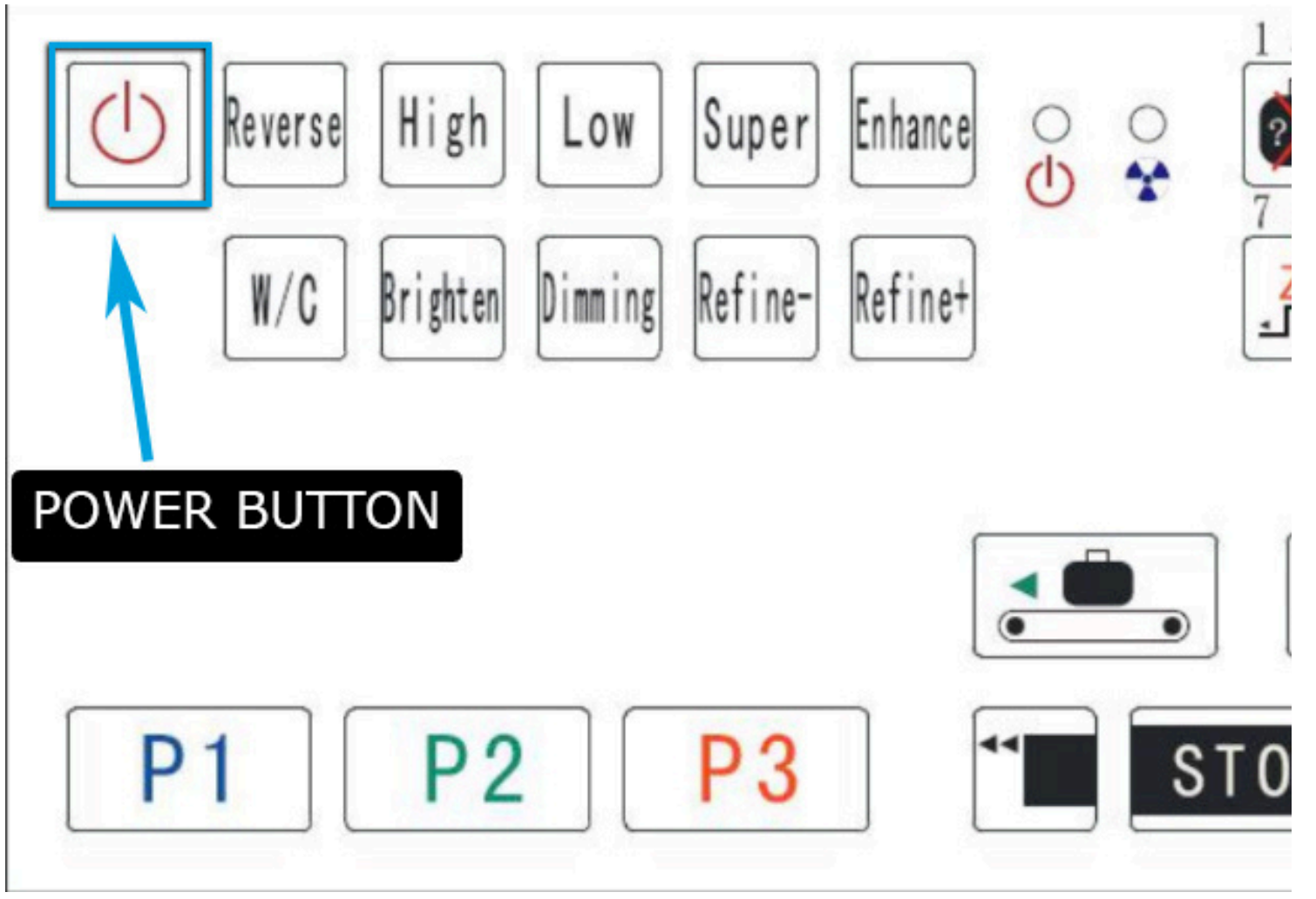

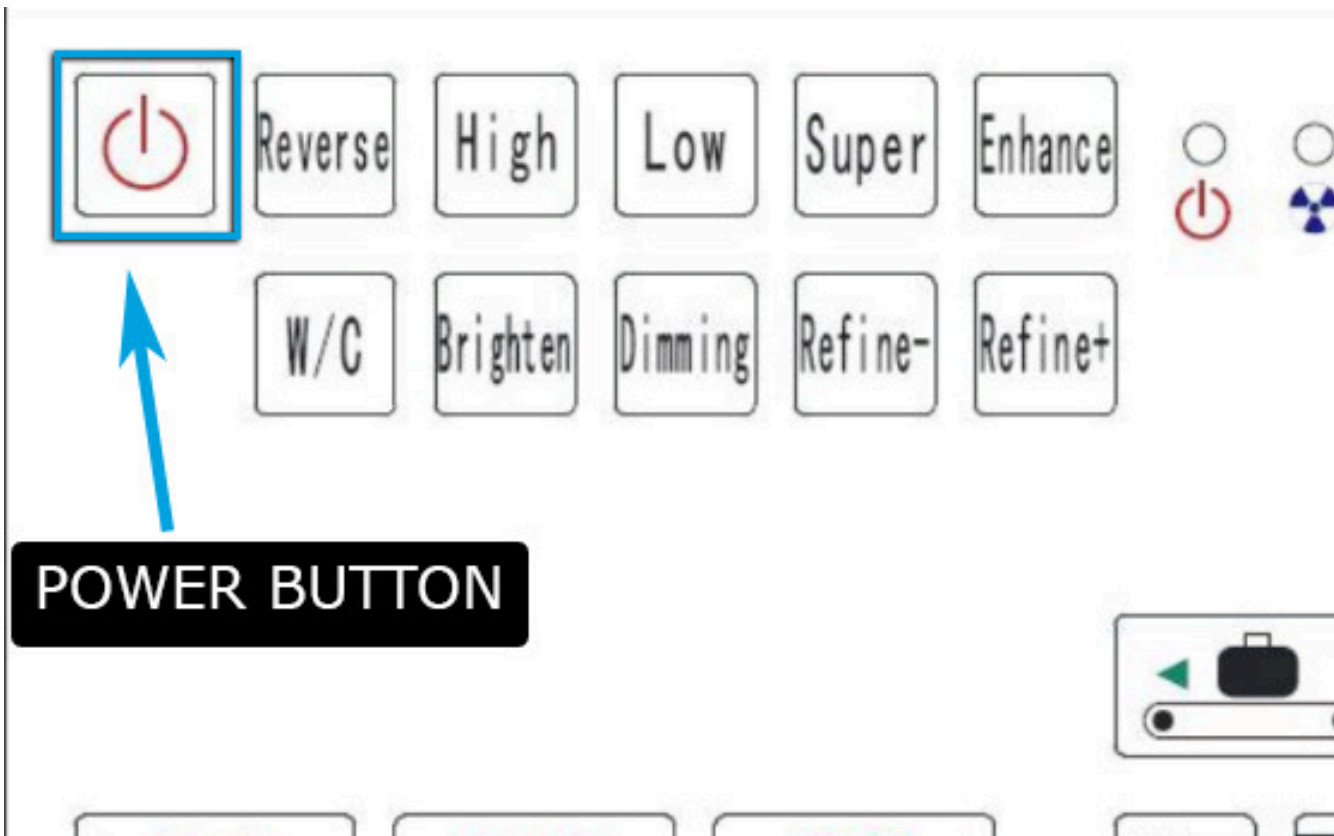

Power Button

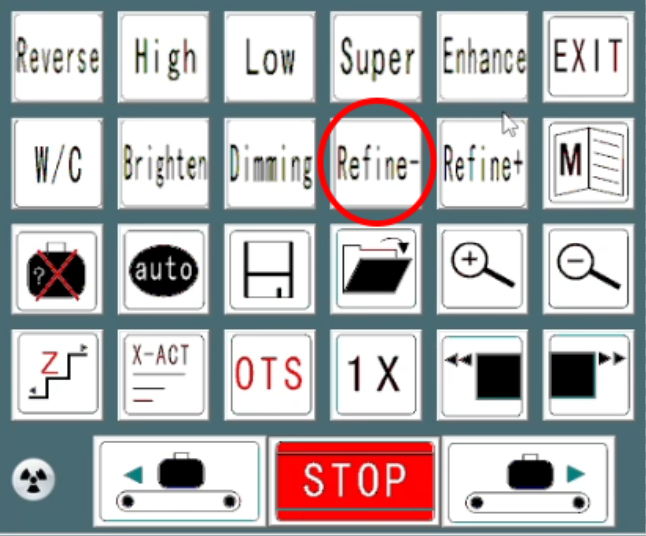

Refine +






Refine -









Machine Shutdown - IMPORTANT!

  1. Push the Stop button on the iPad to stop the belt

  2. Open the control panel on the X-ray machine

  3. Push the power button

  4. The computer will shut down and the screen will go black… wait…

  5. About 30 seconds later, you will hear a click and the machine will turn off. You will know it is turned off based on the click and the fan sound discontinuing

  6. It is now safe to unplug the machine, if needed












Viewing Images

  • Orange - Organic or Low Inorganic

    • Examples

      • Wood, Oil, Paper

    • Possible Threats

      • Cocaine, C-4, TNT

  • Green - High Inorganic, Light Metals

    • Examples

      • Glass, Aluminum, Silicon

    • Possible Threats

      • Propellants, Triggers

  • Blue - Heavy Metals, Dense Metals

    • Examples

      • Iron, Gold, Steel, Silver

    • Possible Threats

      • Guns, Knives, Bullets

  • Black - Impenetrable

    • Examples

      • Lead

    • Possible Threats

      • Shielding for above threats

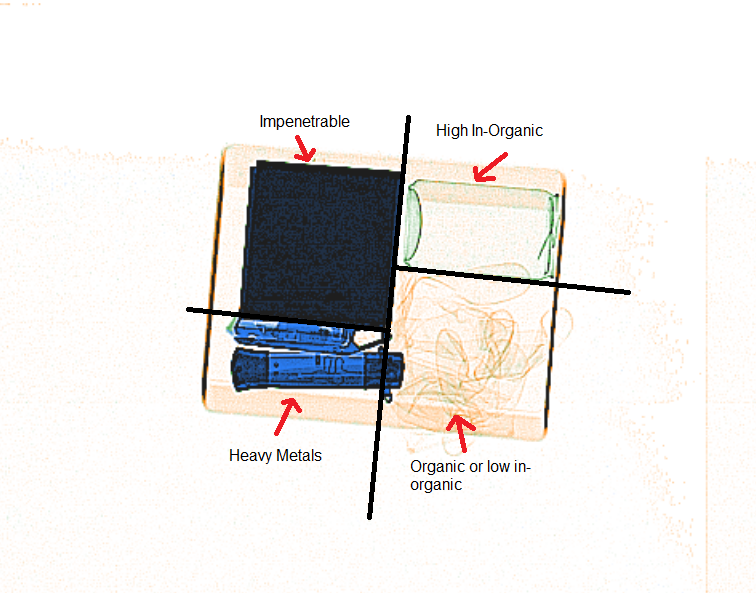

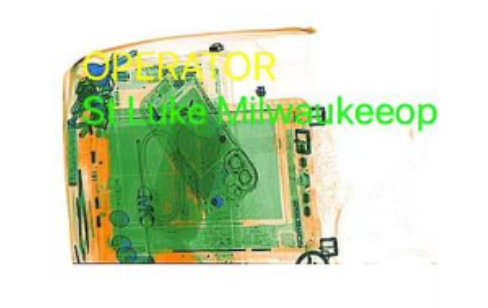

Example image showcasing all four colors:




Troubleshooting:



IF ANY ISSUES ARRISE, ALWAYS ENGAGE EMERGENCY STOP, AND MOVE ALL CIVILIANS AWAY FROM THE MACHINE.


Only then should you begin to troubleshoot.

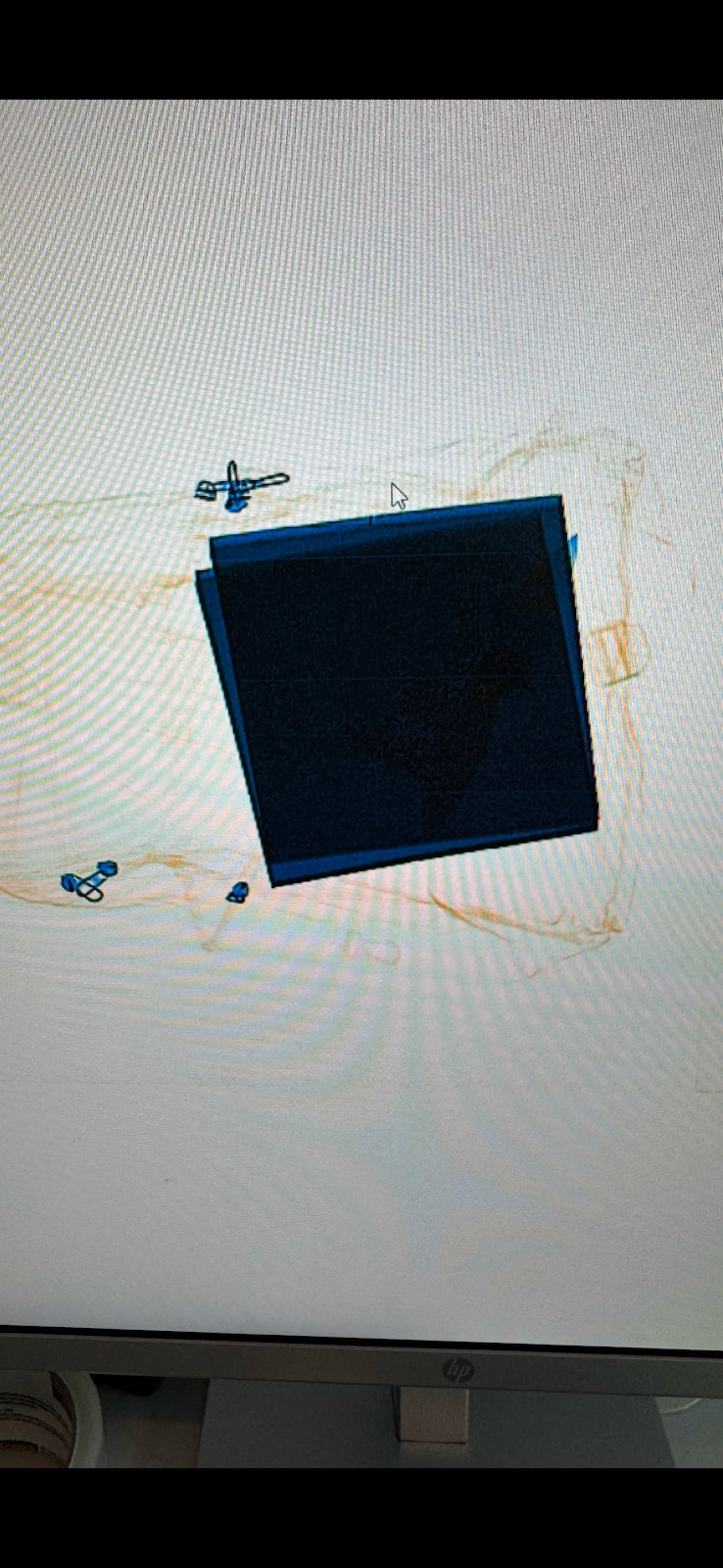

If a metal is impenetrable, meaning the xray-machine cannot see through it, it will show up as deep black, indicating a potential threat.


0.5 Inches of steel:                                                                       0.25 Inches of steel:

















Troubleshooting

X-ray will not turn on

  1. Check that the power cord is plugged in to the wall

  2. Contact Support for additional assistance, 1-833-928-4362



iPad will not turn on

  1. Check that the usb-c is plugged in to the iPad

  2. Unplug and replug usb-c cable

  3. Allow the iPad to charge for at least 10 minutes and it should turn on itself









iPad not receiving alerts from X-ray

  1. Check that the usb-c cable is plugged in

  2. Contact Support for additional assistance, 1-833-928-4362




Live feed in bottom left not appearing:


  • Unplug and replug usb-c cable into the iPad.

  • Contact support.



Image is cut off

  1. Open control panel

  2. Run refine process

  3. If still cut off, turn X-ray off for 5 minutes, then turn on and run refine process

  4. Contact Support for additional assistance, 1-833-928-4362


Example of cut off image

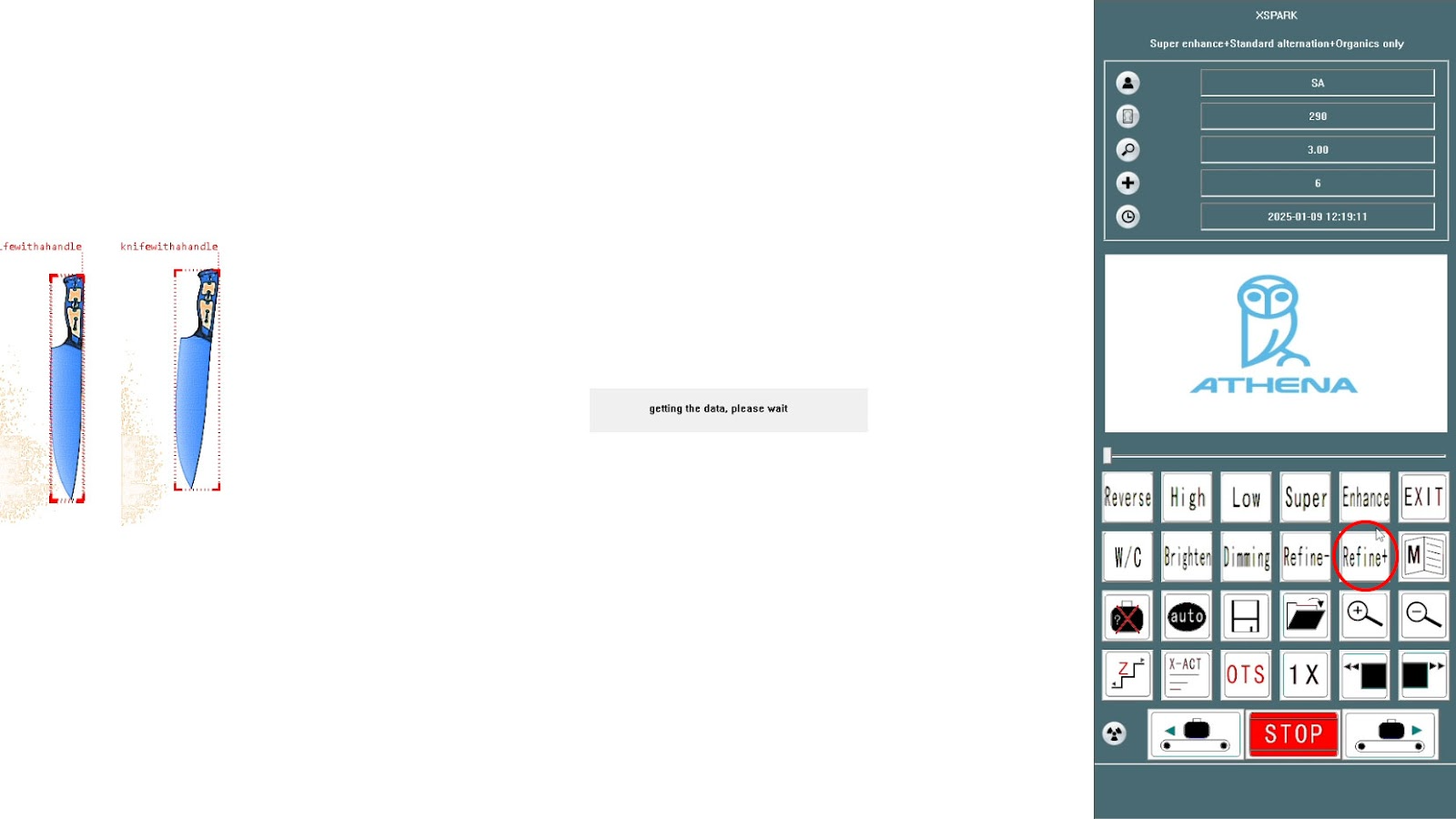

Refine + From IPAD,  if it doesn’t work from the iPad, then use the xray keyboard.







Refine -






Image color is incorrect

  1. Turn off X-ray machine

  2. Wait one minute

  3. Power on X-ray machine

  4. Run refine process

  5. Contact Support for additional assistance, 1-833-928-4362


Refine +






Refine -






Roller stopped and will not start

  1. Turn off X-ray machine

  2. Check inside machine for any stuck items

  3. Start X-ray machine

  4. Push both Emergency Stop buttons in

  5. Twist and pull both Emergency Stop buttons out

  6. Ensure that the belt has not slipped off the rollers

  7. Run Refine

  8. Start the belt

  9. Contact Support for additional assistance, 1-833-928-4362










The belt will not stop moving

  1. Shutdown the X-ray machine

  2. Push both Emergency Stop buttons in

  3. Twist and pull both Emergency Stop buttons out

  4. Startup the X-ray machine

  5. Contact Support for additional assistance, 1-833-928-4362

















All Available Objects


The following is a list of current objects that the AI can detect automatically, there are corresponding sensitivities from 0.1 - 0.99 with 0.1 being the most sensitive, if you disable an object this means the AI will not detect it at all.


If you would like an object disabled, enabled or their corresponding sensitivities adjusted, open a support ticket.

(Spreadsheet format is available for easy Yes, No per item)


Row #, Number, Name, No or Yes, and Sensitivity

Example with comma delimited:  1, 100 metal tool, no, yes, 99




100 metal tool

101 pliers

102 wrench

103 hammer

104 trowel

105 axe

106 saw blade

107 screwdriver

108 plummet

110 metal tool

111 tweezers

200 knife

201 blade

202 utility knife

203 blade

204 folding knife

205 folding knife

206 knife with a handle

207 knife with a handle

208 knife

209 big knife

210 nail clippers

300 fireworks or firecrackers

301 firecracker

302 firecracker

303 fireworks

304 fireworks

305 cake-shape smoke producer

306 small firecrackers

307 air fireworks

308 sparkler

309 detonator

310 steel wool

400 gun or gun parts

401 gun

402 gun sight

403 gun bolt

404 barrel

405 magazine

406 gun parts

407 nail gun

408 Sleeve

409 Butt

410 Grip

500 organic container

501 drink bottle

502 special-shaped organic container

503 can

504 spray bottle

505 flammable liquids

506 hazardous liquid

600 glass container

601 glass bottle

602 wine bottle

603 toilet water bottle

604 nail polish bottle

605 empty glass bottle

700 metal container

701 metal thermos bottle

702 fire extinguisher

703 lighter oil bottle

704 metal can

705 glasses case

706 gasoline or diesel in barrels

708 empty metal thermos

800 electronic equipment

801 laptop

802 small electronic equipment

803 recording pen

804 power bank

805 cigarette lighter

900 pressure vessel

901 pressure vessel

902 car fire extinguisher

903 car fire extinguisher

904 gas tank

905 anti wolf spray

906 compressed gas

907 aerosol

1000 ammunition

1001 bullethead

1003 cannonball

1004 grenade

1100 stick-shape appliance

1101 flashlight stun gun

1102 flash light

1103 electric baton

1200 battery

1201 battery

1202 power bank

1203 lead storage battery

1204 laptop's battery

1205 button battery

1300 pen

1301 pen

1302 recording pen

1400 non-metallic solid

1401 non-metallic solid

1402 organic non-metallic solid

1403 glass glue

1500 metal stationery

1501 shoe with iron

1502 vernier caliper

1503 stapler

1504 steel ruler

1505 compass

1506 razor

1507 coin

1508 steel balls

1600 storage medium

1601 hard disk

1602 USB flash disk

1603 CD

1700 lumpy solid

1701 lumpy solid

1702 organic lumpy solid

1703 organic suspicious substance

1704 green suspicious object

1800 items with magnets

1801 U-shape magnet

1802 speaker

1803 motor

1804 earphone

1900 scissors

2000 lighter

2100 umbrella

2200 handcuffs

2300 brass knuckles

2400 slingshot

2500 expandable baton

2600 seal

2700 cigarette

2800 camera

2900 watch

3000 tablets or pills

3100 book

3101 book

3102 passport

3200 prohibited sundries

3201 matches

3202 crossbow

3203 fork

3204 suspected ivory and other products

3205 suspected rhino horn products

3206 needle

3207 darts

3208 adhesive tape

3209 spoon
