Ai X-Ray Machine Startup

Modified on Wed, May 7 at 9:20 AM

  1. Ensure the power cord is securely plugged into both the wall outlet and the side of the X-ray machine.
  2. Open the control panel on the X-ray machine.

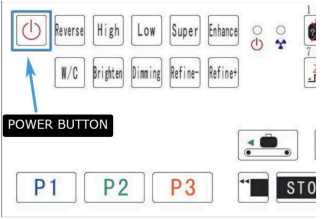

  3. Press the power button and wait approximately 1-2 minutes for the machine to start up and the X-ray application to launch automatically.

  4. Calibrate the X-ray machine by running the refinement process:

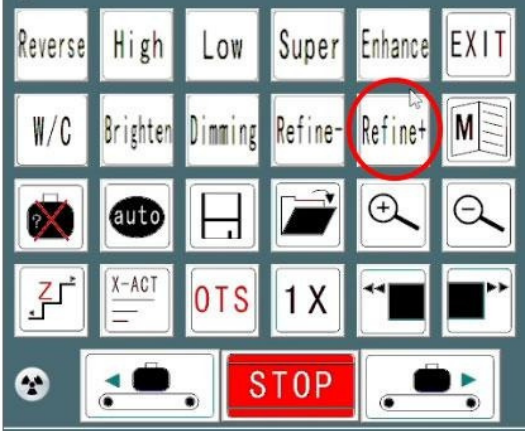

    a. Press [Refine +], then click OK when the “Get Data OK!” message appears.

      b. Press [Refine -], then click OK when the “Get Data OK!” message appears.



    c. Pass 5 test items through, including at least one real threat object to confirm the AI is functioning.
    d. Note: If the AI does not identify objects after passing through five items, shut down and restart the machine, then try again.
  5. Close the control panel.
  6. Press Start on the iPad to begin the belt operation.
